Forum: FPGA, VHDL & Verilog Read Bitmap Color depth 4 Bits


Read Bitmap Color depth 4 Bits
von Guest (Guest)

Rate this post
• ▲ useful
▼ not useful
I have a BMP file that I need to read in VHDL, but I have problems
reading the colors, to be precise, with a color depth of 4 bits.
With a color depth of 24 bits it looks like this:

    r_in : in std_logic_vector(7 downto 0);
    g_in : in std_logic_vector(7 downto 0);
    b_in : in std_logic_vector(7 downto 0);

8 bits each for RGB.

With a color depth of 4 bits, it had to be different on the outside.

I am thankful for every help.

Report post Edit Move Thread sperren Anmeldepflicht aktivieren Anpinnen Delete topic Thread mit anderem zusammenführen Quote selected text Reply Reply with quote
Re: Read Bitmap Color depth 4 Bits
von Lothar M. (Company: Titel) (lkmiller) (Moderator)

Rate this post
• ▲ useful
▼ not useful
Guest wrote:
> I have a BMP file
Attach it here, so it can be examined with a simple hex editor.

Report post Edit Delete Quote selected text Reply Reply with quote
Re: Read Bitmap Color depth 4 Bits
von Guest (Guest)

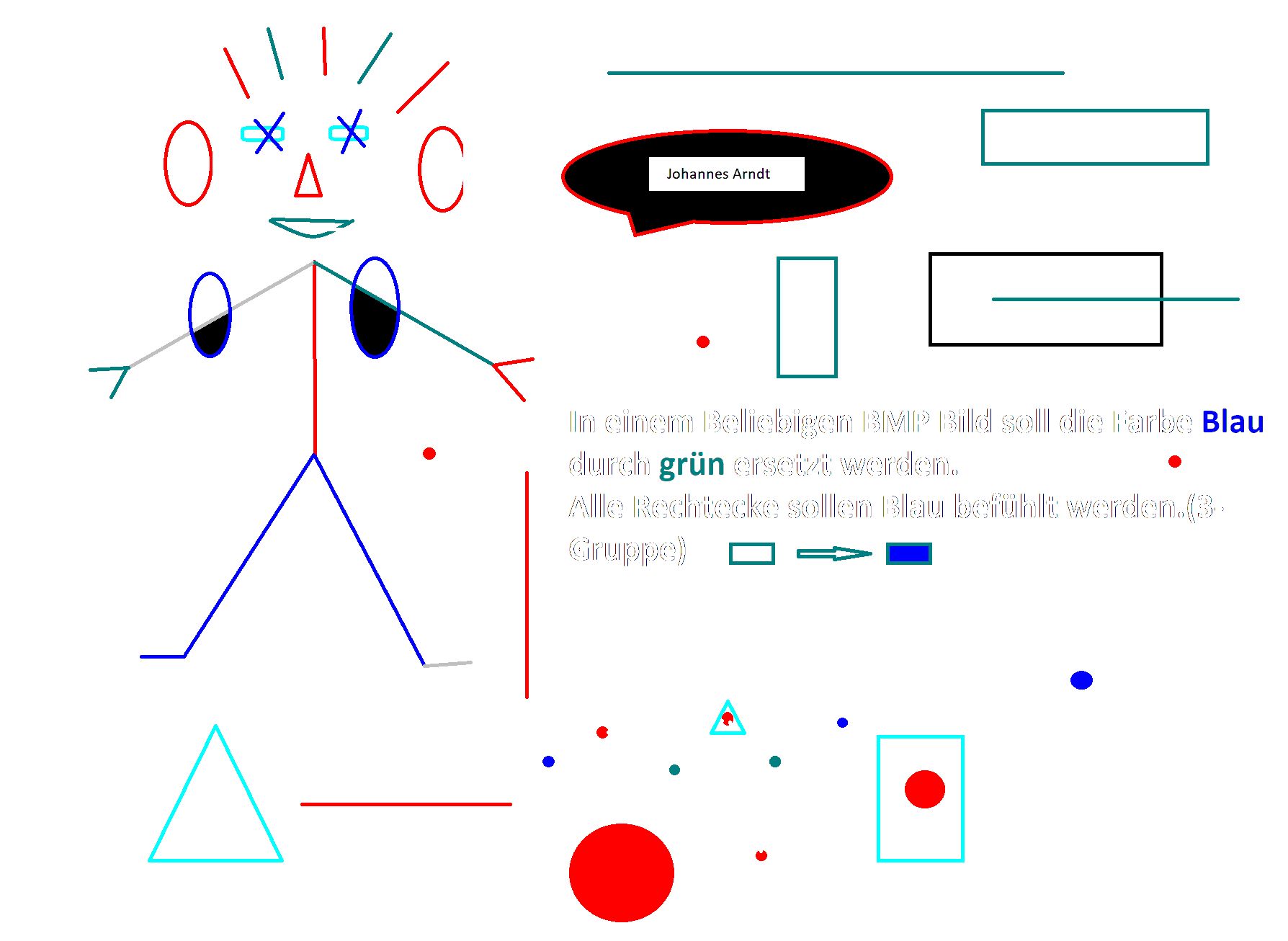

Attached files:
Rate this post
• ▲ useful
▼ not useful
Lothar M. wrote:
> Gast schrieb:
>  > Ich habe eine BMP-Datei.
> Hänge sie hier an, damit sie mit einem einfachen Hex-Editor untersucht
> werden kann.

Report post Edit Delete Quote selected text Reply Reply with quote
Re: Read Bitmap Color depth 4 Bits
von FpGaNoTfALlSeElSoRgE (Guest)

Rate this post
• ▲ useful
▼ not useful
What a silly assignment ... poor students.

Report post Edit Delete Quote selected text Reply Reply with quote
Re: Read Bitmap Color depth 4 Bits
von Duke Scarring (Guest)

Rate this post
• ▲ useful
▼ not useful
Guest wrote:
> With a color depth of 4 bits
4 bit for every color or 4 bits for all together?

Report post Edit Delete Quote selected text Reply Reply with quote
Re: Read Bitmap Color depth 4 Bits
von Guest (Guest)

Rate this post
• ▲ useful
▼ not useful
With a color depth of 4 bits, i.e. 4 bits per pixel.
With 4 bits the colors are indexed, so there are 16 color entries that
are used.
This leaves 1 byte for RGB each.

Report post Edit Delete Quote selected text Reply Reply with quote
Re: Read Bitmap Color depth 4 Bits
von Lothar M. (Company: Titel) (lkmiller) (Moderator)

Rate this post
• ▲ useful
▼ not useful
The first part of this kinda stupid exercise is fairly easy: examine the
structure of the bmp file to find out what index green and blue have and
where the picture data starts, then open it, read it, replace the
corresponding nibbles and write it to a new file.

To find and afterwards fill random rectangles is not that easy,
especially when they may be rotated in any way.

: Edited by Moderator
