Forum: FPGA, VHDL & Verilog for loop in verilog code


Author: nelson george (Company: student) (together)
Posted on:

Rate this post
0 useful
not useful
I have written a verilog code using 'for' loop..My aim is to display
2,3,4 in three consecutive clock cycle.But for the first clock cycle
itself,my 'for' loop is executing fully and showing output as 4.How can
I avoid this??
(I studied that for loop will execute sequentially only.But I am not
getting output sequentially.)
I am including my code below...Plz help me...



module for_test(clk,n,m); //programe for testing the for loop

input clk;

output [7:0] m;
output n;

reg [7:0] m;
integer n;

always @(posedge clk)

begin
for(n=2;n>=0;n=n-1)

begin
if(n==2)
begin
m <=8'h02;
end

else
if(n==1)
begin
m <=8'h03;
end
else
if(n==0)
begin
m <=8'h04;
end
end
end
endmodule

Author: hiall (Guest)
Posted on:

Rate this post
0 useful
not useful
every step in the for loop is workin parallel

Author: nelson george (Company: student) (together)
Posted on:

Rate this post
0 useful
not useful
But how??for loop is a sequential statement!!

Author: 4321 (Guest)
Posted on:

Rate this post
0 useful
not useful
The for statement is executing sequentially but within one clock cycle
as you coded it above.

It should be completely forbidden for beginners to use any loop
statements in Verilog or VHDL because they won't do what you'd expect
from a programming language.

What you want to be implementing is a counter. Search the internet,
there are thousands of examples how it works. http://www.asic-world.com/
contains a lot of examples.

Author: nelson george (Company: student) (together)
Posted on:

Rate this post
0 useful
not useful
ok..then how can i modify the above program so that the for loop will
execute only one iteration for each clock.....
PLZ help me....thanks for ur reply

Author: Lothar Miller (lkmiller) (Moderator)
Posted on:

Rate this post
0 useful
not useful
YOu must implement a counter and then select one of the output values
according to the counters value:
reg [7:0] m;
reg [1:0] n := 2'h02; -- initialize the counter

always @(posedge clk) begin
  n <= n-2'h01;       -- thats the counter
  if(n==2'h02) begin
    m <=8'h02;
  end
  if(n==2'h01) begin
    m <=8'h03;
  end
  if(n==2'h00) begin
    m <=8'h04;
  end
end

I'm sorry, if the code doesn't work directly (I'm a VHDL fellow), but
hopefully you get the idea...   ;-)

Author: nelson george (Company: student) (together)
Posted on:

Rate this post
0 useful
not useful
So i want to replace my for loop with if statement..

Is there any method to use for loop itself??

That means any logical method that execute one iteration of a for loop
in one clock cycle???

Author: Lothar Miller (lkmiller) (Moderator)
Posted on:

Rate this post
0 useful
not useful
> So i want to replace my for loop with if statement..
No, you must replace it by a state machine! Everything in hardware
(FPGA) that has a "one after the other" must be a state machine. And the
most simple kind of a state machine is a counter, counting one step
after the other...

> Is there any method to use for loop itself??
Not for that, waht you want to do.
You can use a loop e.g. if you want to write only one inverter (or
something else) and you want to get lots of inverters in parallel on
the FPGA...

Author: nelson george (Company: student) (together)
Posted on:

Rate this post
0 useful
not useful
Lothar Miller wrote:
>> So i want to replace my for loop with if statement..
> No, you must replace it by a state machine! Everything in hardware
> (FPGA) that has a "one after the other" must be a state machine. And the
> most simple kind of a state machine is a counter, counting one step
> after the other...
>
>> Is there any method to use for loop itself??
> Not for that, waht you want to do.
> You can use a loop e.g. if you want to write only one inverter (or
> something else) and you want to get lots of inverters in parallel on
> the FPGA...

Actually above code is only a sample...I want to include a block of
statements in each iteration that i want to execute sequentially in each
clock cycle..If i go for state machine i want to replicate my code for
each state and code length become very large...Thats why i am asking
about for loop that execute sequentially like a state machine!!!

Author: Lothar Miller (lkmiller) (Moderator)
Posted on:

Rate this post
0 useful
not useful
> Thats why i am asking about for loop that execute sequentially
> like a state machine!!!
To keep things short: such a loop does not exist.

> I want to include a block of statements in each iteration that i want
> to execute sequentially in each clock cycle..
What is your actual problem?

Author: nelson george (Company: student) (together)
Posted on:

Rate this post
0 useful
not useful
Lothar Miller wrote:
>> Thats why i am asking about for loop that execute sequentially
>> like a state machine!!!
> To keep things short: such a loop does not exist.
>
>> I want to include a block of statements in each iteration that i want
>> to execute sequentially in each clock cycle..
> What is your actual problem?
In my design all the iterations of for loop is  executing in one clock
edge....
I want a for loop which will execute one iteration in one clock
edge...That means in first rising edge of clock,it should execute first
iteration of for loop.In second rising edge of clock,it should execute
2nd iteration of for loop like wise it should continue....
thanks for ur replies!!!!

Author: Lothar Miller (lkmiller) (Moderator)
Posted on:

Rate this post
1 useful
not useful
> I want a for loop which will execute one iteration in one clock edge...
Then you can't use Verilog.
Because loops in Verilog don't offer the desired behaviour!

To say it in a different way: a loop in Verilog is not capable to do
what you want.

> In my design all the iterations of for loop is  executing in one clock
> edge....
Thats exactly the way a loop in Verilog is expected to work.


Is it really that hard to understand?  :-o

I already told the solution everybody else in the world uses: FSM
https://www.google.de/search?q=verilog+fsm

Author: Blue (Guest)
Posted on:

Rate this post
0 useful
not useful
Im trying to write a verilog code for this expression as an assignment..
anyone who knows about it please help.. thanks in advance

Author: Blue (Guest)
Posted on:

Rate this post
0 useful
not useful
Blue wrote:
> Im trying to write a verilog code for this expression as an
> assignment..
> anyone who knows about it please help.. thanks in advance

for i=1:H
        for j=1:W
            k(i,j) = (1-(2*i/(R*H)-1/R)^2-...
                (2*j/(R*W)-1/R)^2);
            if k(i,j) < 0
                k(i,j) = 0;
            end
        end
    end
end

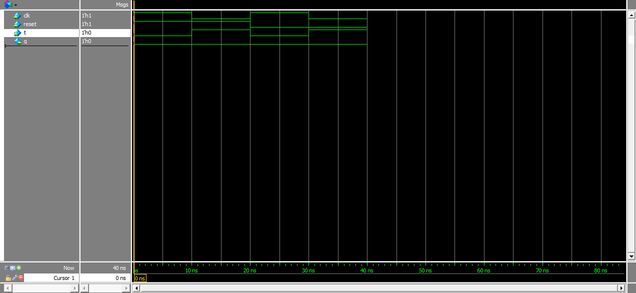

Author: flipflop (Guest)
Posted on:
Attached files:

Rate this post
0 useful
not useful
dls

Author: Shahid (Guest)
Posted on:
Attached files:

Rate this post
0 useful
not useful
how to fix my error 1440 in verilog code

Author: Lothar Miller (lkmiller) (Moderator)
Posted on:

Rate this post
0 useful
not useful
Shahid wrote:
> how to fix my error 1440 in verilog code
Read about "loops in Verilog". They do not what you (or any other
C-programmer) expect...

> how to fix my error 1440 in verilog code
Try it with a fixed range in the loop and terminate the loop
prematurely.


BTW: it is a very, very clever idea to post source code NOT as a
screenshot. It is very, very difficult to apply some changes or even
copy a line out of that kind of "code".

BTW2: pls start a NEW thread for a NEW question.

BTW3: did you read the thread ahead of your post. Did you read the thing
about the different behaviour of loops?
